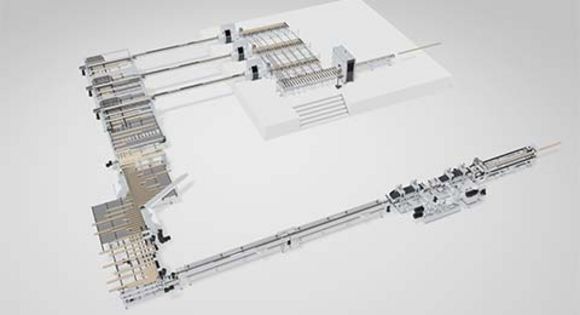

WEINIG VS 200 / 300: High-performance line for vertical profiles

The VS 200 / 300 has two vertical single timber shapers that face each other in an offset position. This finger jointing line processes each work piece very precisely - shaping a vertical finger joint. This is possible as a result of a continuous chain installed between the shapes.

Following the shaping unit, the work pieces are then conveyed through a cross feeder transfer into the feed in track and from there into the press. When making your selection, your can also choose our new through-feed press. However, other solutions are available.

The precise positioning of the work piece onto the shaping unit produces a very high quality end product and this occurs at high speed.

Prices
x

Different requirements - different prices

The price of a WEINIG machine is just as individual as your requirements are. Therefore, let us discuss briefly what is most important to you – you will then receive our preliminary, non-binding quote.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.
Personal advice
x

Personal advice – for higher productivity and greater efficiency

Together with your WEINIG expert you will find the ideal machine for your requirements. Simply submit the completed form, and your local WEINIG expert will be happy to discuss all further details with you.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.

WEINIG single panel lines offer you

  • Every work piece is individually aligned and processed.
  • High-performance lines for capacities up to 180 (200) m/min.
  • With automatic feeding system and stacking solutions

WEINIG VS 200 / 300 offers you

  • High quality: Each lamella is individually aligned and clamped on four sides
  • Material yield: Short infeed lengths can be processed
  • Flexible length range: VS 200: 300-3200 mm / 150 pieces, VS 300: 600-6200 mm / 70 pieces
  • Shaper capacity: up to 150 pieces / min
  • Capacity of the press: up to 180 (200) m/min

Further information

Downloads

Simple, fast and sustainable: more details in a downloadable PDF document.

Overview brochure (PDF, 2 MB)

Further images

Transfer and frequency-regulated feed-in up to 200 m/min.
Feed-in line, through-feed press and flying edging saw, for continuous production

Technical Details

Vertical finger joint

Vertical profile

The vertical finger joint is the most frequently produced type of finger joint in the world. It provides the highest performance in a packaged finger jointing line.

The vertical profile is mainly applied in constructive woodworking, but is also used for building windows and frames. It is has the largest glue surface and is therefore the most stable of all finger joints.
